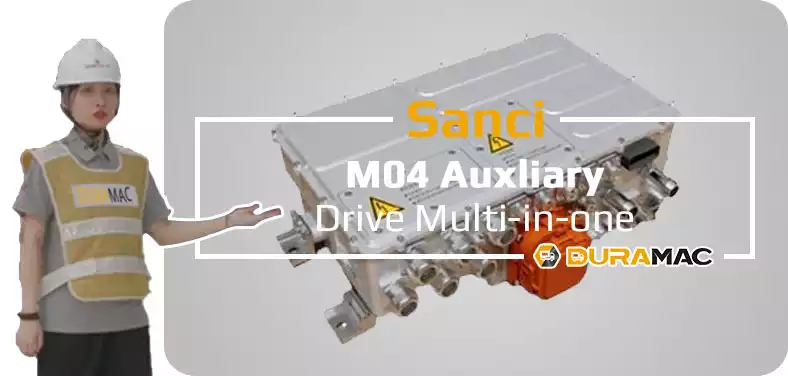

Sanci M04 Auxliary Drive Multi-in-one
Sanci M04 Auxliary Drive Multi-in-one is suitable for the control and protection of high-power motors. Its protection level is IP67, EMC is Class 3.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Sanci M04 Auxliary Drive Multi-in-one has functions such as overvoltage, undervoltage, overcurrent, short circuit, IGBT overtemperature, motor overtemperature, overspeed, active discharge, anti-slip, creep, fault limp, intelligent power limit, etc., and there are more functions to be developed later. EMAC will continue to update the product introduction page of different motor controllers. Please subscribe to our website to get the latest update information.
If you are in need of motor controller that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at DCEC.
General Specifications of M04 Auxliary Series
| Input Voltage Range: | DC 250 V-750 V |
| Output Voltage: | 27.5 VDC |
| DCDC Power Rating: | 3/5 kW @ 24 V |
| DCAC Power Rating: | 5.5 kW |
| DCDC Rated Current: | 110/180 A |
| DCAC Rated Current: | 13 A |
| EMC: | Class3 |
| Levels of Protection: | IP67 |
| Weight: | 19 kg |
| Dimension(L * W * H): | 608 mm * 373 mm * 186 mm |
Sanci M04 Auxliary Drive Multi-in-one
This is the list of all series of Sanci M04 Auxliary Drive Multi-in-one.
Products Not Available
The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.
