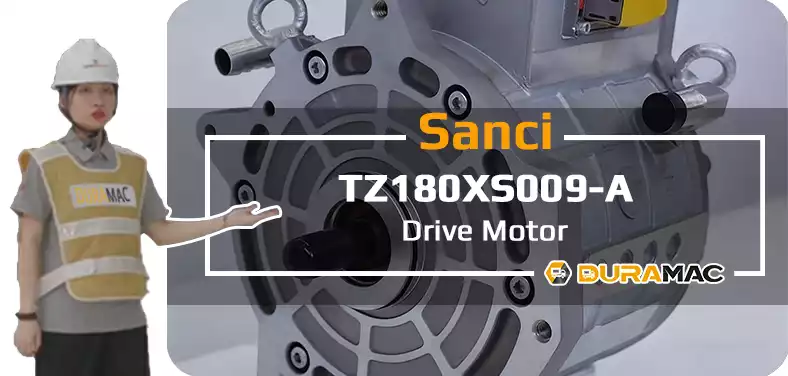

TZ180XS009-A Drive Motor
Sanci TZ180XS009-A Drive Motor is a highly integrated electric drive system with a voltage platform of 618 VDC, rated/peak power of 60/120 kW, rated/peak torque of 120/200 Nm, and rated/maximum speed of 4775/7500 rpm.
The application scenarios of Sanci TZ180XS009-A Drive Motor are Mini Van, Logistics Vehicle, Construction Machine, Etc.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages of TZ180XS009-A Drive Motor
-
Thermal management: water channels are connected, and multiple thermal management systems are integrated.
-
High integration: free up space, can be effectively integrated into various vehicles and industrial equipment, and optimize the layout and performance of the whole vehicle.
-
Simple structural design and easy maintenance: simplify connectors, integrate structure and process, reduce suppliers, and improve product qualification rate.
-
Professional R&D capabilities: through NVM simulation and verification, set vehicle NVM targets, optimize NVH of electric drive system and motor modal design, and perform modal testing, electric drive bench NVH testing, and vehicle NVH testing.
-
Innovative technology: The company actively adopts innovative technologies, such as rotor topology technology, flat wire winding technology, and oil cooling simulation capabilities.
Technical Specifications
| Drive Motor Model: | TZ180XS009-A |
| Voltage Platform: | 618 VDC |
| Rated Power: | 60 kW |
| Peak Power: | 120 kW |
| Rated Torque: | 120 Nm |
| Peak Torque: | 200 Nm |
| Rated Speed: | 4775 rpm |
| Maximum Speed: | 7500 rpm |
| Rated Current: | 160 Arms |
| Peak Current: | 255 Arms |
| Motor Weight: | 38 kg |
| Motor Size: | Φ 220 mm * 294 mm |
Motor Model |
Voltage Platform |
Rated Power |
Peak Power |
Rated Torque |
Peak Torque |
| TZ180XS014E | 350 VDC | 40 kW | 75 kW | 48 Nm | 130 Nm |
| TZ180XS009-A | 618 VDC | 60 kW | 120 kW | 120 Nm | 200 Nm |
| TZ180XS009-B | 320 VDC | 60 kW | 30 kW | 100 Nm | 225 Nm |
| TZ180XS017A | 540 VDC | 20 kW | 40 kW | 150 Nm | 300 Nm |
| ——END—— | |||||
The TZ180XS009-A specific main parameters are as follows.
The understanding and application of these parameters can help engineers and users better configure, operate and maintain the Z180XS009-A Drive Motor to ensure its optimal performance and safety in actual applications.
|
Model |
TZ180XS009-A | TZ180XS009-B | TZ180XS017A |
|---|---|---|---|
| Voltage Platform | 618 VDC | 320 VDC | 540 VDC |
| Rated / Peak Power | 60/120 kW | 30/60 kW | 20/40 kW |
| Rated / Peak Torque | 120/200 Nm | 100/225 Nm | 150/300 Nm |
| Rated / Max. RPM | 4775/7500 rpm | 2865/9000 rpm | 1273/2400 rpm |
| Rated / Peak Current | 160/255 Arms | 119/245 Arms | 40/80 Arms |
| Motor Weight | 38 kg | 38 kg | 46 kg |
| Motor Size | Φ 220 * 294 mm | Φ 220 * 294 mm | Φ 220 * 298 mm |
The TZ180XS009-A Drive Motor the specific chart description are as follows.
Charts can more intuitively present the characteristics of the product,understanding the maximum characteristic curve and efficiency MAP can help engineers and users better configure, operate and maintain the TZ180XS009-A Drive Motor to ensure its optimal performance and safety in actual applications.
The following is a detailed illustration of the basic dimensions of the TZ180XS009-A. Understanding these is critical to many aspects of the design, installation, transportation and maintenance process, and can help ensure the efficiency and safety of the equipment during use.
The specific aspects are as follows:
(1)Suitability assessment: By understanding the dimensions of the drive motor, it can be evaluated whether it can fit into a specific installation space or mechanical structure. This is critical for engineering design and layout to ensure that the equipment can be installed and operated correctly.
(2)Space planning: Basic dimensions can help plan the layout of the equipment, including the spatial relationship with other components or systems. This is important for factory equipment layout, vehicle electrical system design, etc.
(3)Ease of installation: Knowing the size of the drive motor can help prepare appropriate mounting brackets, fixing equipment or develop installation procedures in advance. This helps to simplify the installation process and reduce possible rework or adjustments.
(4)Transportation and storage: Knowing the dimensions also helps plan the transportation and storage of the equipment, ensuring that the equipment is not damaged or the risk of damage during handling and storage is minimized.
Can Quality be Guaranteed?
(1) Rich production experience: We have many years of experience in producing this product, which can match various types of mechanical equipment from 2T to 10T.
(2) Quality management system: Our company has a complete quality management system to ensure that every link meets strict quality standards.
(3) Continuous improvement and feedback mechanism: We focus on continuous improvement, communicate with customers through feedback mechanism, continuously optimize product quality and performance, and ensure that the needs of the market and customers are met.
Is the Price Reasonable?
We are the original manufacturer and can give you the most suitable price. The key to dealing with Chinese suppliers is to find and choose reliable business partners who will not deceive you for short-term business, but aim to establish a long-term career and lifelong partnership. EMAC is one of the reliable partners. We will not pursue short-term high profits, but we care about our decades of good reputation. Our cooperation with all business partners is not only as suppliers and customers, but also as close friends and brothers.
What should I do if I don’t Understand the Product?
You can unconditionally explain your needs to us. We have a professional team that uses simple and clear language to explain the characteristics and advantages of the product and help you choose the right motor to match the best controller. If you need further support or explanation, we are always available to help and explain the relevant content to help you solve the problem.
How to Place an Order?
You can confirm the product by connecting with our sales, or you can choose to contact us through wahtspp or your email, and we will guide you to complete the order process.
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
